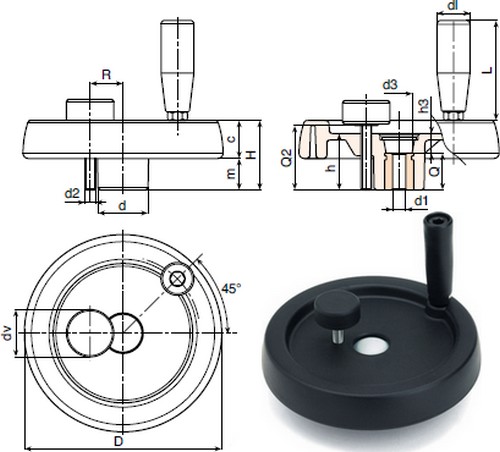

Solid control handwheel with foldaway revolving handle and locking handwheel
This product is not for sale! You can choose an alternative category plastic parts.
Material: Reinforced Polyamide
The material is resistant to oils and greases.
Surface: Satin
Handwheel and Handle colour: Black (RAL 9011)
Central cap: Grey polyamide (RAL 7035 cod.13)
Main insert: Zinc plated steel
| rendelési szám | D | H | h | d | m | c | d3 | h3 | R | d2 | Q2 | d1H7 | Q | dm | dl | L | Weight (g) | Ár/db |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C970-100 D05 | 100 | 39 | 34 | 30 | 18,5 | 20,5 | 16 | 10 | 20 | M6 | A.R. | 5 H9 | 24 | 16 | 20 | 56 | 252 | 3094 HUF |
| C970-100 D10 | 100 | 39 | 34 | 30 | 18,5 | 20,5 | 16 | 10 | 20 | M6 | A.R. | 10 | 24 | 16 | 20 | 56 | 250 | 3094 HUF |
| C970-125 D05 | 125 | 44 | 37 | 36 | 20 | 24 | 26 | 13 | 22-25 | M6 | A.R. | 5 H9 | 24 | 18 | 21 | 65 | 410 | 3654 HUF |
| C970-125 D12 | 125 | 44 | 37 | 36 | 20 | 24 | 26 | 13 | 22-25 | M6 | A.R. | 12 | 24 | 18 | 21 | 65 | 407 | 3654 HUF |
| C970-150 D05 | 150 | 54 | 44 | 38 | 25 | 29 | 26 | 12 | 25-28 | M8 | A.R. | 5 H9 | 32 | 22 | 21 | 65 | 636 | 3948 HUF |
| C970-150 D14 | 150 | 54 | 44 | 38 | 25 | 29 | 26 | 12 | 25-28 | M8 | A.R. | 14 | 32 | 22 | 21 | 65 | 625 | 3948 HUF |
| C970-175 D05 | 173 | 57 | 47 | 40 | 25,5 | 31,5 | 26 | 15 | 26-36 | M8 | A.R. | 5 H9 | 32 | 22 | 23 | 76 | 812 | 5194 HUF |
| C970-175 D16 | 173 | 57 | 47 | 40 | 25,5 | 31,5 | 26 | 15 | 26-36 | M8 | A.R. | 16 | 32 | 22 | 23 | 76 | 802 | 5194 HUF |
| C970-200 D05 | 202 | 59 | 49 | 44 | 24 | 35 | 27 | 13 | 28-42 | M8 | A.R. | 5 H9 | 36 | 28 | 25 | 86 | 1040 | 6482 HUF |
| C970-200 D20 | 202 | 59 | 49 | 44 | 24 | 35 | 27 | 13 | 28-42 | M8 | A.R. | 20 | 36 | 28 | 25 | 86 | 1025 | 6482 HUF |
| C970-250 D05 | 249 | 68 | 58 | 59 | 29 | 39 | 36 | 22 | 36-50 | M8 | A.R. | 5 H9 | 36 | 28 | 25 | 86 | 1590 | 10150 HUF |
| C970-250 D20 | 249 | 68 | 58 | 59 | 29 | 39 | 36 | 22 | 36-50 | M8 | A.R. | 20 | 36 | 28 | 25 | 86 | 1570 | 10150 HUF |
Az ár nem tartalmazza az ÁFA-t és csak utánvételes fizetés esetén érvényes. Amennyiben meg lett adva a megrendelési szám, kérjük tüntesse azt fel a kiválasztott árunál. Szállítás tól 2175 HUF.
