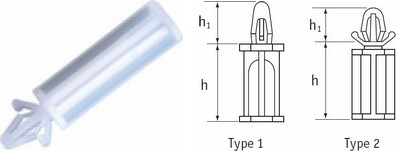

Screw-Fastened Supports
Nylon 6.6
Click-in/screw-in design.
To suit PCB thickness 1,0 - 1,8 mm.
Fixing hole for assembly with self-tapping screw (not supplied).
| rendelési szám | méretek (mm) | Mounting Hole | típus | Mennyiség/csomag | ár/csomag/db | Ár/db | ||
|---|---|---|---|---|---|---|---|---|
| h | h1 | PCB | Chassis | |||||
| 463788 | 5,0 | 8,0 | 4,0 | 3,5 | 2 | 100 db | 41 HUF | 64 HUF |
| 100206400002 | 6,4 | 9,0 | 4,0 | 3,5 | 1 | 100 db | 39 HUF | 74 HUF |
| 100209100002 | 9,6 | 8,0 | 4,0 | 3,5 | 2 | 100 db | 36 HUF | 74 HUF |
| 100209500002 | 9,5 | 9,0 | 4,0 | 3,5 | 1 | 100 db | 41 HUF | 67 HUF |
| 100212700002 | 12,7 | 9,0 | 4,0 | 3,5 | 1 | 100 db | 35 HUF | 59 HUF |
| 100213100002 | 12,7 | 8,0 | 4,0 | 3,5 | 2 | 100 db | 35 HUF | 69 HUF |
| 100215900002 | 15,9 | 9,0 | 4,0 | 3,5 | 1 | 100 db | 35 HUF | 69 HUF |
| 100219100002 | 19,1 | 8,0 | 4,0 | 3,5 | 2 | 100 db | 74 HUF | 84 HUF |
| 100219200002 | 19,1 | 9,0 | 4,0 | 3,5 | 1 | 100 db | 36 HUF | 60 HUF |
| 100222200002 | 22,2 | 9,0 | 4,0 | 3,5 | 1 | 100 db | 36 HUF | 74 HUF |
| 100225400002 | 25,4 | 9,0 | 4,0 | 3,5 | 1 | 100 db | 39 HUF | 64 HUF |
| 100228600002 | 28,6 | 9,0 | 4,0 | 3,5 | 1 | 100 db | 41 HUF | 67 HUF |
| 100229100002 | 28,5 | 8,0 | 4,0 | 3,5 | 2 | 100 db | 69 HUF | 115 HUF |
| 463789 | 35,0 | 8,0 | 4,0 | 3,5 | 2 | 100 db | 74 HUF | 123 HUF |
Az árak áfa nélkül értendőek, és a rendeléskor történő fizetésre vonatkoznak.
