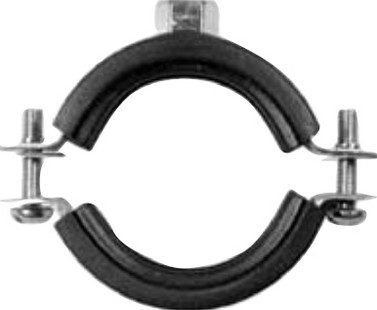

Two-screw pipe clamp, type M8 clamping head and a combined M8/10 clamping head
Surface finish: galvanic zinc plated. Pipe clamps of a dimension of 1/4" to 6/4" are equipped with an M8 clamping head and pipe clamps of dimensions of 54 – 59 mm to 210 – 219 mm (8") are equipped with a more massive M8/M10 clamping head and a combined thread. Two-screw pipe clamps satisfy the highest requirements while mounting on walls, ceilings and floors but also in connection with pipes used in sanitary installations. Screws have a combined head with a cross and a slot. Use: steel pipes, cast iron pipes, copper pipes, glass pipes, plastic pipes. Field: sanitary and heating installations; gas distribution systems; air conditioning systems; tube post and others. Use within temperature range: -40 °C to +110 °C . We also smaller amounts than packing bag. We also supply the stainless steel.
| rendelési szám | External diameter of the pipe | DN (mm) | D1 | Screw | K (mm) | L (mm) | T (mm) | db/csomag | ár/db | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d(mm) | (mm) | (mm) | |||||||||
| ODVOSW100012016 | 16 | 12-16 | 1/4" | 8 | M8 | M5x20 | 20 | 55 | 1,2 | 100 db | 137 HUF |
| ODVOSW100017019 | 18 | 17-19 | 3/8" | 10 | M8 | M5x20 | 20 | 58 | 1,2 | 100 db | 150 HUF |
| ODVOSW100020023 | 20 | 20-23 | 1/2" | 15 | M8 | M5x20 | 20 | 61 | 1,2 | 100 db | 155 HUF |
| ODVOSW100025030 | 25 | 25-30 | 3/4" | 20 | M8 | M5x20 | 20 | 67 | 1,2 | 100 db | 172 HUF |
| ODVOSW100031038 | 32 | 31-38 | 1" | 25 | M8 | M5x20 | 20 | 78 | 1,2 | 100 db | 182 HUF |
| ODVOSW100040046 | 40 | 40-46 | 5/4"(1 1/4") | 32 | M8 | M5x20 | 20 | 86 | 1,2 | 100 db | 199 HUF |
| ODVOSW100048053 | 50 | 48-53 | 6/4"(1 1/2") | 40 | M8 | M5x20 | 20 | 94 | 1,2 | 50 db | 211 HUF |
| ODVOSW100054059 | 56 | 54-59 | M8/M10 | M6x20 | 20 | 101 | 1,2 | 50 db | 309 HUF | ||
| ODVOSW100060064 | 63 | 60-64 | 2" | 50 | M8/M10 | M6x20 | 20 | 110 | 1,5 | 50 db | 332 HUF |
| ODVOSW100067071 | 68 | 67-71 | M8/M10 | M6x20 | 20 | 115 | 1,5 | 50 db | 356 HUF | ||
| ODVOSW100072078 | 75 | 72-78 | 2 1/2" | 65 | M8/M10 | M6x20 | 25 | 125 | 1,5 | 50 db | 426 HUF |
| ODVOSW100081086 | 83 | 81-86 | M8/M10 | M6x25 | 25 | 137 | 1,5 | 50 db | 484 HUF | ||
| ODVOSW100087092 | 90 | 87-92 | 3" | 80 | M8/M10 | M6x25 | 25 | 143 | 1,5 | 50 db | 503 HUF |
| ODVOSW100095103 | 101 | 95-103 | M8/M10 | M6x30 | 25 | 155 | 1,5 | 50 db | 529 HUF | ||
| ODVOSW100102116 | 110,116 | 102-116 | 4" | 100 | M8/M10 | M6x30 | 25 | 170 | 2 | 50 db | 612 HUF |
| ODVOSW100121127 | 125 | 121-127 | M8/M10 | M8x30 | 25 | 186 | 2,5 | 25 db | 788 HUF | ||
| ODVOSW100133141 | 140 | 133-141 | 5" | 125 | M8/M10 | M8x30 | 25 | 200 | 2,5 | 25 db | 847 HUF |
| ODVOSW100159168 | 165 | 159-168 | 6" | 150 | M8/M10 | M8x30 | 25 | 230 | 2,5 | 25 db | 952 HUF |
| ODVOSW100164170 | 165 | 164-170 | M8/M10 | M8x30 | 25 | 230 | 2,5 | 25 db | 1035 HUF | ||
| ODVOSW100182188 | 165 | 182-188 | M8/M10 | M8x30 | 25 | 230 | 2,5 | 25 db | 1079 HUF | ||
| ODVOSW100193203 | 210 | 193-203 | M8/M10 | M8x30 | 25 | 245 | 2,5 | 15 db | 1103 HUF | ||
| ODVOSW100204210 | 210 | 204-210 | M8/M10 | M8x30 | 25 | 285 | 2,5 | 15 db | 1123 HUF | ||
| ODVOSW100210219 | 219 | 210-219 | 8" | 200 | M8/M10 | M8x30 | 25 | 285 | 2,5 | 15 db | 1142 HUF |
Az ár nem tartalmazza az ÁFA-t és csak utánvételes fizetés esetén érvényes. Amennyiben meg lett adva a megrendelési szám, kérjük tüntesse azt fel a kiválasztott árunál. Szállítás tól 2175 HUF.
