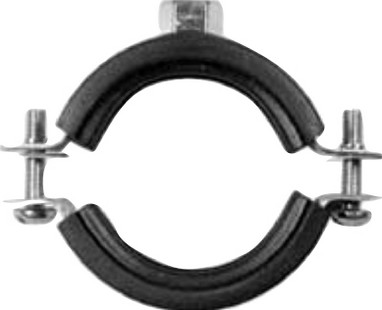

Two-screw pipe clamp type M8 or M10 clamping head, stainless W4, W5
| rendelési szám | External diameter of the pipe | DN (mm) | D1 | Screw | K (mm) | L (mm) | T (mm) | db/csomag | ár/db | |
|---|---|---|---|---|---|---|---|---|---|---|
| (mm) | (mm) | |||||||||
| ODVOSW400012016 | 12-16 | 1/4" | 8 | M8 | M5x20 | 20 | 55 | 1,2 | 100 db | 528 HUF |
| ODVOSW400017019 | 17-19 | 3/8" | 10 | M8 | M5x20 | 20 | 58 | 1,2 | 100 db | 549 HUF |
| ODVOSW400020023 | 20-23 | 1/2" | 15 | M8 | M5x20 | 20 | 61 | 1,2 | 100 db | 595 HUF |
| ODVOSW400025030 | 25-30 | 3/4" | 20 | M8 | M5x20 | 20 | 67 | 1,2 | 100 db | 637 HUF |
| ODVOSW400031038 | 31-38 | 1" | 25 | M8 | M5x20 | 20 | 78 | 1,2 | 100 db | 678 HUF |
| ODVOSW400040046 | 40-46 | 5/4"(1 1/4") | 32 | M8 | M5x20 | 20 | 86 | 1,2 | 100 db | 769 HUF |
| ODVOSW400048053 | 48-53 | 6/4"(1 1/2") | 40 | M8 | M5x20 | 20 | 94 | 1,2 | 50 db | 805 HUF |
| ODVOSW400054059 | 54-59 | M8 | M5x22 | 20 | 101 | 1,2 | 50 db | 948 HUF | ||
| ODVOSW400060064 | 60-64 | 2" | 50 | M8 | M5x22 | 20 | 110 | 1,5 | 50 db | 1032 HUF |
| ODVOSW400067071 | 67-71 | M10 | M5x22 | 20 | 115 | 1,5 | 50 db | 1106 HUF | ||
| ODVOSW400072078 | 72-78 | 2 1/2" | 65 | M10 | M6x20 | 25 | 125 | 1,5 | 50 db | 1488 HUF |
| ODVOSW400081086 | 81-86 | M10 | M6x20 | 25 | 137 | 1,5 | 50 db | 1565 HUF | ||
| ODVOSW400087092 | 87-92 | 3" | 80 | M10 | M6x20 | 25 | 143 | 1,5 | 50 db | 1600 HUF |
| ODVOSW400095103 | 95-103 | 90 | M10 | M6x25 | 25 | 155 | 1,5 | 50 db | 1764 HUF | |
| ODVOSW400102116 | 102-116 | 4" | 100 | M10 | M6x30 | 25 | 170 | 2 | 50 db | 2215 HUF |
| ODVOSW400121127 | 121-127 | M10 | M8x30 | 25 | 186 | 2,5 | 25 db | 2493 HUF | ||
| ODVOSW400133141 | 133-141 | 5" | 125 | M10 | M8x30 | 25 | 200 | 2,5 | 25 db | 2541 HUF |
| ODVOSW400159168 | 159-168 | 6" | 150 | M10 | M8x30 | 25 | 230 | 2,5 | 25 db | 2754 HUF |
| ODVOSW400193203 | 193-203 | - | - | M10 | M8x30 | 25 | 245 | 2,5 | 15 db | 3069 HUF |
| ODVOSW400204210 | 204-210 | M10 | M8x30 | 25 | 285 | 2,5 | 12 db | 3107 HUF | ||
| ODVOSW400210219 | 210-219 | 8" | 200 | M10 | M8x30 | 25 | 285 | 2,5 | 12 db | 3107 HUF |
| rendelési szám | External diameter of the pipe | DN (mm) | D1 | Screw | K (mm) | L (mm) | T (mm) | db/csomag | ár/db | |
|---|---|---|---|---|---|---|---|---|---|---|
| (mm) | (mm) | |||||||||
| ODVOSW500012016 | 12-16 | 1/4" | 8 | M8 | M5x20 | 20 | 55 | 1,2 | 100 db | 843 HUF |
| ODVOSW500017019 | 17-19 | 3/8" | 10 | M8 | M5x20 | 20 | 58 | 1,2 | 100 db | 864 HUF |
| ODVOSW500020023 | 20-23 | 1/2" | 15 | M8 | M5x20 | 20 | 61 | 1,2 | 100 db | 959 HUF |
| ODVOSW500025030 | 25-30 | 3/4" | 20 | M8 | M5x20 | 20 | 67 | 1,2 | 100 db | 1005 HUF |
| ODVOSW500031038 | 31-38 | 1" | 25 | M8 | M5x20 | 20 | 78 | 1,2 | 100 db | 1084 HUF |
| ODVOSW500040046 | 40-46 | 5/4"(1 1/4") | 32 | M8 | M5x20 | 20 | 86 | 1,2 | 50 db | 1225 HUF |
| ODVOSW500048053 | 48-53 | 6/4"(1 1/2") | 40 | M8 | M5x20 | 20 | 94 | 1,2 | 50 db | 1288 HUF |
| ODVOSW500054059 | 54-59 | M8 | M5x22 | 20 | 101 | 1,2 | 50 db | 1525 HUF | ||
| ODVOSW500060064 | 60-64 | 2" | 50 | M8 | M5x22 | 20 | 110 | 1,5 | 50 db | 1712 HUF |
| ODVOSW500067071 | 67-71 | M10 | M5x22 | 20 | 115 | 1,5 | 100 db | 1854 HUF | ||
| ODVOSW500072078 | 72-78 | 2 1/2" | 65 | M10 | M6x20 | 25 | 125 | 1,5 | 50 db | 2404 HUF |
| ODVOSW100081086 | 81-86 | M10 | M6x20 | 25 | 137 | 1,5 | 50 db | 2482 HUF | ||
| ODVOSW500087092 | 87-92 | 3" | 80 | M10 | M6x20 | 25 | 143 | 1,5 | 50 db | 2593 HUF |
| ODVOSW500095103 | 95-103 | 90 | M10 | M6x25 | 25 | 155 | 1,5 | 50 db | 2797 HUF | |
| ODVOSW500102116 | 102-116 | 4" | 100 | M10 | M6x30 | 25 | 170 | 2 | 50 db | 3583 HUF |
| ODVOSW500121127 | 121-127 | M10 | M8x30 | 25 | 186 | 2,5 | 25 db | 4070 HUF | ||
| ODVOSW500133142 | 133-142 | 5" | 125 | M10 | M8x30 | 25 | 200 | 2,5 | 25 db | 4164 HUF |
| ODVOSW500159168 | 159-168,0 | 6" | 150 | M10 | M8x30 | 25 | 230 | 2,5 | 12 db | 4383 HUF |
| ODVOSW500210219 | 210-219 | 8" | 200 | M10 | M8x30 | 25 | 285 | 2,5 | 12 db | 6454 HUF |
Az ár nem tartalmazza az ÁFA-t és csak utánvételes fizetés esetén érvényes. Amennyiben meg lett adva a megrendelési szám, kérjük tüntesse azt fel a kiválasztott árunál. Szállítás tól 2175 HUF.
